Declarative Programming (COMP90048)

Week 1

Imperative languages are based on commands, in the form of instructions and statements.

• Commands are executed.
• Commands have an effect, such as to update the computation state,and later code may depend on this update.

Logic programming languages are based on finding values that satisfy a set of constraints.

• Constraints may have multiple solutions or none at all.
• Constraints do not have an effect.

Functional languages are based on evaluating expressions.

• Expressions are evaluated.
• Expressions do not have an effect.

Prolog

Prolog is a declarative programming language. It is based on logic programming and uses the predicate calculus.

% import the test.pl file
% (A small part of) the British Royal family
% parent(queen_elizabeth, prince_charles).
% parent(prince_philip, prince_charles).
% parent(prince_charles, prince_william).
% parent(prince_charles, prince_harry).
% parent(princess_diana, prince_william).
% parent(princess_diana, prince_harry).
?- [test].
%queries
?- parent(prince_charles, prince_william).
% true
% This query asks: of whom Prince Charles is a parent?
?- parent(prince_charles, X)

• If there is more than one answer to the query, Prolog prints them one at a time, pausing to see if more solutions are wanted. Typing semicolon asks for more solutions; just hitting enter (return) finishes without more solutions.

Rules

Rules need to be written in the file .pl

% “X is grandparent of Z if X is parent of Y and Y is parent of Z .”
grandparent(X,Z) :- parent(X, Y), parent(Y, Z).

• Rules can be recursive. Prolog has no looping constructs, so recursion is widely used.

% A person’s ancestors are their parents and the ancestors of their parents.
ancestor(Anc, Desc) :-parent(Parent, Desc),ancestor(Anc, Parent).

Equality

• Equality in Prolog, written “=” and used as an infix operator, can be used both to bind variables and to check for equality. Prolog is a single-assignment language: once bound, a variable cannot be reassigned.

Disjunction and Conjunction

• Goals can be combined with disjunction (or) as well as conjunction (and). Disjunction is written “;” and used as an infix operator. Conjunction (“,”) has higher precedence (binds tighter) than disjunction, but parentheses can be used to achieve the desired precedence.

Negation

• Negation in Prolog is written “+” and used as a prefix operator. Negation has higher (tighter) precedence than both conjunction and disjunction. Be sure to leave a space between the + and an open parenthesis.

% Who are the parents of Prince William other than Prince Charles?
?- parent(X, prince_william), \+ X = prince_charles.
X = princess_diana.

• Disequality in Prolog is written as an infix “=”. So X = Y is the same as + X = Y.

Closed World Assumption

• Prolog assumes that all terms are true, unless explicitly stated otherwise. This is called the closed world assumption (CWA). This means that if a term is not mentioned in the program, it is assumed to be false. This can be a problem if the program is used to reason about real-world situations, where some terms may be unknown or undecidable.

Info

1. Variables must start with an uppercase letter (A-Z) or _.
2. Atoms (constants) must start with a lowercase letter (a-z) or be enclosed in single quotes ('...').
3. Prolog is strictly case-sensitive, so X and x are completely different!

Week 2

Prolog Concepts

• In Prolog, all data structures are called term. A term can be atomic orcompound, or it can be a variable.
• An atom begins with a lower case letter and follows with letters, digits and underscores
• each compound term is a functor (sometimes called function symbol) followed by one or more arguments in parentheses, separated by commas.
• List: [] is the empty list, [H | T] is a list with head H and tail T.
• A variable is also a term. It denotes a single unknown term. A variable name begins with an upper case letter or underscore, followed by any number of letters, digits, and underscores.
• Prolog is a single-assignment language: a variable can only be bound (assigned) once.
• A term is a ground term if it contains no variables, and it is a nonground term if it contains at least one variable.
• A substitution is a mapping from variables to terms.Any ground Prolog term has only one instance, while a nonground Prolog terms has an infinite number of instances.

Proper Lists

• A proper list is either empty ([]) or not ([X | Y]), in which case, the tail of the list must be a proper list. We can define a predicate to recognise these.

proper_list([]).
proper_list([_Head|Tail]) :-
proper_list(Tail).

Append

• The append operation is used to concatenate two lists. It is defined as follows:

append([], C, C).
append([A|B], C, [A|BC]) :-
append(B, C, BC).

e.g. Find the first n th elements of a list

% Find the first n th elements of a list
take(N, List, Front) :-
length(Front,N),
append(Front, _, List).

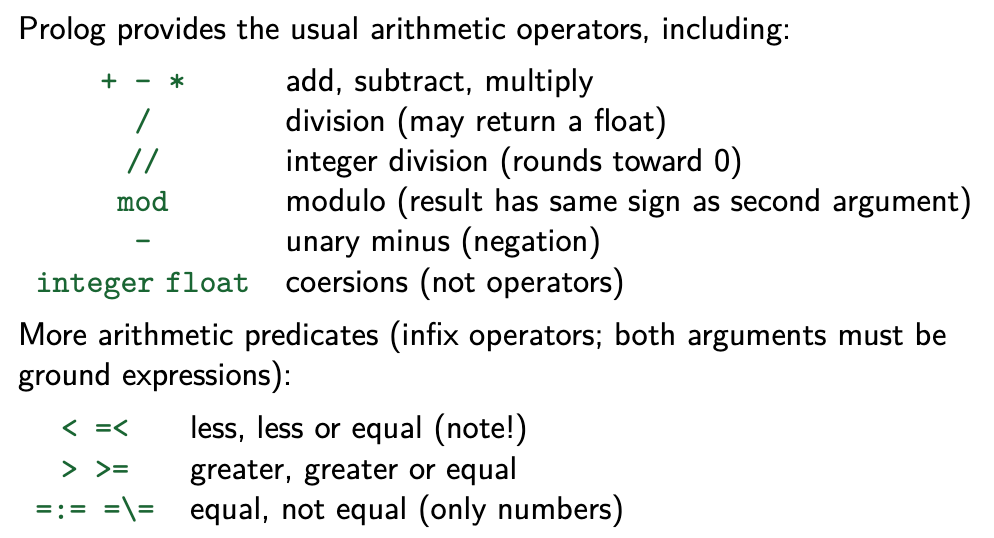

Arithmetic

• Use the built-in predicate is/2 (an infix operator) evaluates expressions.

Logic and Resolution

1. Resolution Method (Resolution):

Resolution is an inference method used in automated reasoning systems (like Prolog). It works by applying facts and rules to a goal, simplifying the goal until it becomes either a tautology or a contradiction.

2. Rules and Facts:

• Facts are known true statements.
• Rules are conditional inferences and are written in the form of head :- body. This means if body is true, then head is true.

3. Resolution Algorithm:

• The core of the resolution method is to use proof by contradiction (driving reasoning through negation of the goal).
• It simplifies the goal by matching it with rules and facts in the program until a conclusion is reached, or no solution is found.

4. Specific Process:

• Select a clause and attempt to match it with the goal.
• Use logical reasoning to reduce the goal until it is either true (tautology) or false (contradiction). If the goal is true, a solution has been found. If false, there is no solution.

Summary:

Resolution in Prolog is used to derive a goal step by step by applying rules, rather than directly "computing" the result. It is a logic programming approach based on inference.

Week 3

Debugger

• The debugger prints the current port, execution depth, and goal (with the current variable bindings) at each step.
• use trace. to start tracing, and notrace. to stop tracing. creep can be used to step through the program one step at a time.
• Bird box model: the debugger shows the current state of the program, and the user can selectively step through the program to examine the intermediate states.

Infinite backtracking loop

• If a goal cannot be proven, Prolog will backtrack and try other possibilities. This can lead to an infinite loop.
• To avoid this, we can use the once predicate, which will try to prove the goal once, and fail if it cannot be proven。

Tail Recursion

• Tail recursion is a special case of recursion where the recursive call is the last operation performed in the function.

• Efficiency: Tail recursion helps to avoid adding stack frames with each recursive call, thereby reducing memory consumption. Especially with deep recursion, it can prevent stack overflow errors.

• Optimization: Some Prolog implementations can optimize tail-recursive predicates by reusing the same stack frame, making the performance of tail recursion as efficient as iterative solutions.

• We make factorial tail recursive by introducing an accumulating parameter, or just an accumulator. This is an extra parameter to the predicate that holds a partially computed result.

Week 4

Homoiconicity

• Homoiconicity is a property of programming languages that allows the use of data structures as first-class citizens.
• In Prolog, this means that terms can be constructed and manipulated at runtime, and that the language itself can be used as a data structure.

Auto-loading

• Many SWI Prolog “built-ins”, such as append/3, are not actually built-in, but are auto-loaded.

Info

Call

square(X, Y) :- Y is X * X. ?- call(square, 5, Y). Y = 25.

e.g.

filter(_, [], []).
filter(P, [X|Xs], Filtered) :-
    ( call(P, X) ->
        Filtered = [X|Filtered1]
    ;
        Filtered = Filtered1
    ),
    filter(P, Xs, Filtered1).

# 保留偶数
filter(even, [1,2,3,4,5,6], Result).
# Result 将是 [2,4,6]

# 保留大于3的数
filter(X > 3, [1,2,3,4,5,6], Result).
# Result 将是 [4,5,6]

Setof

• The setof construct is used to generate a set of solutions to a goal. It is similar to findall, but it returns a set of solutions instead of a list. Template：模板项，通常包含Goal中的变量 Goal：要求解的目标 List：收集的解的有序列表 e.g.

#  找出能被3整除的数
setof(X, X in 1..10, Y)
# Y 将是 [3, 6, 9]

# 更复杂的例子
setof(X, Y^(parent(Y, X)), Children)
# 找出每个父亲的孩子列表

Use existential quantification, written with infix caret (ˆ), to collect solutions for a template regardless of the bindings of some of the variables not in the Template.

Bagof

• The bagof/3 predicate is just like setof/3, except that it does not sort the result or remove duplicates.

Comparing

• Prolog, somewhat arbitrarily, uses the ordering: Variables < Numbers < Atoms < CompoundTerms
• @<, @=<, @>, and @>=

Sorting

• sort list according to @< ordering
• sort/2 sorts a list, removing duplicates,
• msort/2 sorts a list, without removing duplicates, and
• keysort/2 stably sorts list of X-Y terms, only comparing X parts

Determining term types

?- integer(3)
true.

?- float(3.14)
true.

?- atom(hello)
true.

Others

• var/1 holds for unbound variables, nonvar/1 holds for any term other than an unbound variable, and ground/1 holds for ground terms (this requires traversing the whole term). Using these or the predicates on the previous slide can make your code behave differently in different modes.

% Define a custom infix operator
:- op(Precedence, Type, OperatorName).
:- op(500, yfx, '+>').

% Now it can be used like this
test(X) :- 3 +> 4 = X.
- write/1 is handy for printing messages

Propagation and Labeling

• Propagation: Reducing the domain of variables through constraints to improve solving efficiency.
• Labeling: Selecting specific values for variables to try to satisfy all constraints.

CLP(FD)

• In the CLP(FD) (Constraint Logic Programming over Finite Domains) library, more advanced arithmetic constraint predicates are provided, which can be used for bidirectional reasoning (i.e., in,out and out,in modes). | Arithmetic Predicate | Limitation | CLP(FD) Alternative | Advantage | |--------------------------|----------------|-------------------------|---------------| | is/2 | Right side must be ground | #=/2 | Supports variable inference | | =:=/2 | Can only compare known values | #=/2 | Suitable for variables | | =\=/2 | Can only compare known values | #\=/2 | Suitable for variables | | =< /2 | Can only compare known values | #=</2 | Suitable for variables |

Operator	Description
Expr1 #= Expr2	Expr1 equals Expr2
Expr1 #\= Expr2	Expr1 not equal to Expr2
Expr1 #> Expr2	Expr1 greater than Expr2
Expr1 #< Expr2	Expr1 less than Expr2
Expr1 #>= Expr2	Expr1 greater than or equal to Expr2
Expr1 #=< Expr2	Expr1 less than or equal to Expr2
Var in Low..High	Low ≤ Var ≤ High
List ins Low..High	Each Var in List is between Low..High

• label/1 is an enumeration predicate used to search for specific assignments of variables to satisfy all defined constraints. It traverses possible values of variables and solves them.

• Generate-and-Test requires generating candidate solutions before validation, which is less efficient.

• Constrain-and-Generate reduces the range of candidate solutions through constraints, usually more efficient.

• Through labeling, Prolog can automate the search process and provide the final solution.

Week 5

Haskell

• Haskell is a purely functional programming language. It is statically typed, and supports pattern matching, higher-order functions, and lazy evaluation.

[] in Haskell

• The empty list is denoted by [], and it is a built-in data type in Haskell.
• ["a","b"] is syntactic suger for "a" : "b" : [].

Functions in Haskell

Info

Haskell 是一种纯函数式编程语言，它强调在编程中使用函数。在 Haskell 中，函数是一等公民，这意味着它们可以像其他数据类型一样被传递和操作。下面是一些关于 Haskell 函数的基本介绍：

函数定义

在 Haskell 中，函数通过以下语法定义：

name :: TypeSignature
name parameter1 parameter2 ... = expression

• name 是函数的名称。
• TypeSignature 是函数的类型签名，它声明了函数的输入类型和输出类型。
• parameter1, parameter2, ... 是函数的参数。
• expression 是函数体，它定义了如何从参数计算结果。

示例

这是一个简单的 Haskell 函数，它将两个数字相加：

add :: Num a => a -> a -> a
add x y = x + y

在这个例子中，add 是函数名，Num a => 表示这个函数适用于任何数值类型 a，a -> a -> a 是类型签名，表示函数接受两个类型为 a 的参数并返回一个类型为 a 的结果。

函数调用

在 Haskell 中，函数调用不使用括号，而是通过空格分隔参数：

result = add 3 4

这将返回 7。

模式匹配

Haskell 函数通常使用模式匹配来定义不同的行为，这类似于其他语言中的 switch 语句或多个 if-else 语句。例如：

factorial :: (Integral a) => a -> a
factorial 0 = 1
factorial n = n * factorial (n - 1)

这里，factorial 函数通过模式匹配定义了两种情况：当输入为 0 时返回 1，否则递归地计算 n * (n - 1)!。

递归

由于 Haskell 没有 while 或 for 循环，递归是执行重复任务的主要方式。上面的 factorial 函数就是一个递归的例子。

高阶函数

Haskell 支持高阶函数，即可以接受其他函数作为参数或返回函数作为结果的函数。例如：

applyTwice :: (a -> a) -> a -> a
applyTwice f x = f (f x)

这个 applyTwice 函数接受一个函数 f 和一个参数 x，然后两次应用 f 到 x 上。

惰性计算

Haskell 使用惰性计算模型，这意味着表达式只在需要时计算。这允许 Haskell 程序以非常高效的方式处理无限数据结构和其他高级抽象。 这些是 Haskell 函数的一些基本概念。Haskell 的强大之处在于它的类型系统和函数式编程范式，这使得编写简洁、可重用和高效的代码成为可能。

Referential transparency

• A function is referentially transparent if it always returns the same result when given the same arguments.

Useful Haskell Built in Functions

• length computes the number of elements in a list
• null returns True if a list is empty, and False otherwise
• the !! operator gets the nth element of a list, as in [1,2,3,4] !! 2, which gives us 3 (note zero-based list indexing).
• the ++ operator joins two lists together, as in [1,2] ++ [3,4], which gives us [1,2,3,4]
• head and tail separate a list into its first and remaining elements
• last and init do just the opposite
• take n and drop n split the list at an arbitrary point

Common List Functions

head, tail, last, init, take and drop sum maximum elem !! ++ splitAt

Basic Types

• Int: Integer, 32-bit signed integer
• Integer: Integer, arbitrary-precision integer
• Float: Floating-point number
• Char: Character
• String: List of characters
• Bool: Boolean
• Tuple: Fixed-size collection of values
• List: Variable-size collection of values

Week 6

Binary Tree

Search Tree

Expression Tree

Week 7

Common Functions in Data.List

函数	类型签名	作用说明	示例代码	输出结果
map	(a -> b) -> [a] -> [b]	对列表每个元素应用一个函数	map (*2) [1,2,3]	[2,4,6]
sort	Ord a => [a] -> [a]	升序排序	sort [3,1,2]	[1,2,3]
filter	(a -> Bool) -> [a] -> [a]	保留满足条件的元素	filter even [1..6]	[2,4,6]
group	Eq a => [a] -> [[a]]	把相邻相等的元素分组	group [1,1,2,3,3,3]	[[1,1],[2],[3,3,3]]
nub	Eq a => [a] -> [a]	去除重复元素（保留第一个出现的）	nub [1,2,2,3,1]	[1,2,3]
delete	Eq a => a -> [a] -> [a]	删除列表中第一个匹配的元素	delete 2 [1,2,3,2]	[1,3,2]
(\\)	Eq a => [a] -> [a] -> [a]	列表差：从左边列表中删去右边所有元素	[1,2,2,3] \\ [2,3]	[1,2]

List Comprehension

Home-made map

myMap :: (a -> b) -> [a] -> [b]
myMap f xs = [f x | x <- xs]

Home-made filter

myFilter :: (a -> Bool) -> [a] -> [a]
myFilter p xs = [x | x <- xs, p x]

Loop Conversion

function matches xs ys:
    set l to []
    for x in xs:
        for y in ys:
            if x == y:
                append x to l
    return (length l)

这段逻辑的作用是： 统计在两个列表 xs 和 ys 中相等的元素对的数量（包括重复）。

---

✅ Haskell 版本的写法：

matches :: Eq a => [a] -> [a] -> Int
matches xs ys = length [x | x <- xs, y <- ys, x == y]

---

🔍 分解解释：

• [x | x <- xs, y <- ys, x == y] 这是一种列表推导，生成一个新列表，包含所有 x，满足：

  • x 来自 xs
  • y 来自 ys
  • 只有当 x == y 时才留下

• 然后用 length 来统计这样的匹配有多少个。
