Single Sign-On (SSO) and Authentication Guide

1. Single Sign-On (SSO)

Definition

• Single Sign-On (SSO) is an authentication method
• Allows users to access multiple systems with one set of credentials
• Providing centralized login across different applications

SSO Implementation Approach

I. User Access to System

• User visits other systems
• Gateway checks token validity

II. Token Validation

• If token is invalid
• Returns 401 (Authentication Failed)
• Frontend redirects to login page

III. Login Process

• User sends login request
• Server returns token to browser
• Browser saves token in cookie

IV. Accessing Other Services

• All subsequent requests must carry token
• Gateway uniformly validates token
• Routes to target service

2. Permission Authentication

Backend Management System Development Experience

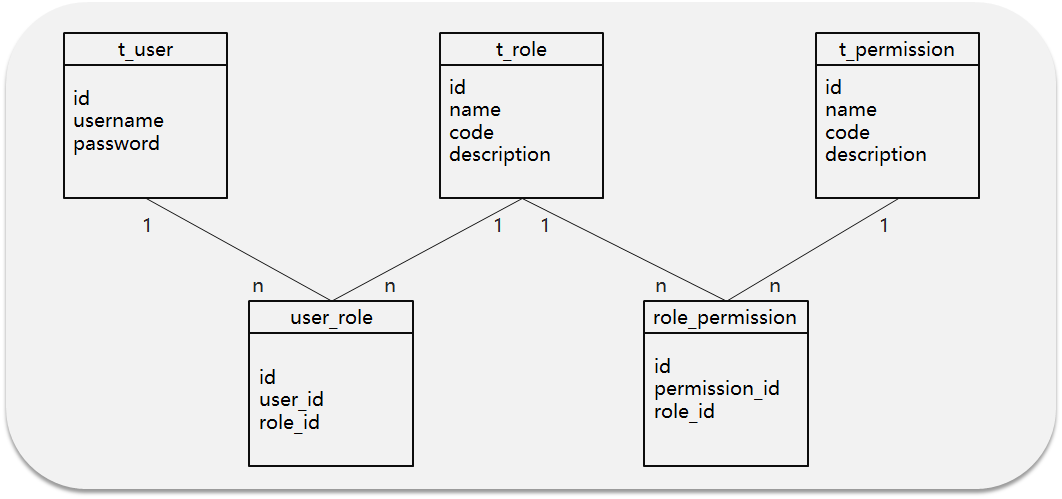

RBAC Permission Model

• 5 Core Tables Relationship:

1. User Table
2. Role Table
3. Permission Table
4. User-Role Intermediate Table
5. Role-Permission Intermediate Table

Authorization Frameworks

• Spring Security
• Apache Shiro
