MySQL’s InnoDB storage engine uses B+ Trees as its primary data structure for indexing. B+ Trees are a modified version of B-Trees, optimized for database indexing.
What is a B-Tree?

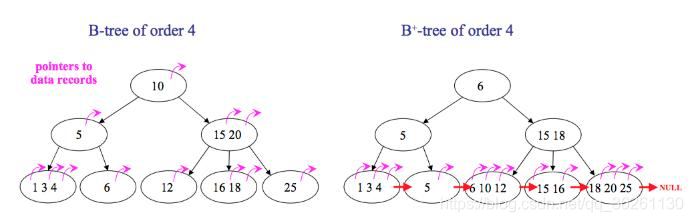

A B-Tree (Balanced Tree) is a multi-way balanced tree. Key characteristics of B-Trees include:
- Data Stored in Nodes: Each node in a B-Tree stores keys and values, so data can be located in both leaf and non-leaf nodes.
- Multi-Branch Structure: Each node can have multiple child nodes. The number of children depends on the degree (order) of the B-Tree.
- Balance: B-Trees are balanced, meaning all leaf nodes are at the same level.
- Search Efficiency: Due to its structure, B-Trees provide efficient searching, especially for small datasets.
What is a B+ Tree?
A B+ Tree is an enhanced version of the B-Tree, better suited for database indexing and especially for range queries. Key characteristics of B+ Trees include:
- Data Only Stored in Leaf Nodes: All actual data is stored in leaf nodes, while non-leaf nodes only contain keys. This forms a linked list of all data at the leaf level.
- Sequential Access: Leaf nodes are connected by a linked list, making range queries and ordered data retrieval efficient.
- Non-Leaf Nodes as Indexes: Non-leaf nodes act purely as index points, allowing for more keys at each level, reducing the tree height and increasing efficiency for large datasets.
Key Differences Between B-Trees and B+ Trees
| Feature | B-Tree | B+ Tree |
|---|---|---|
| Data Storage | Data in both leaf & non-leaf | Data only in leaf nodes |
| Non-Leaf Node Data | Yes, stores data | No, stores only index keys |
| Linked List Connection | None | Leaf nodes connected by linked list |
| Range Query Efficiency | Moderate | High due to linked leaf nodes |
| Tree Height | Higher due to data storage | Lower as nodes contain only indexes |
Why InnoDB Chooses B+ Tree?
Efficient Range Queries: In databases, range queries (e.g.,
BETWEENor sorting) are common. The linked structure of B+ Tree leaf nodes makes range queries more efficient.Reduced I/O Operations: Since non-leaf nodes store only indexes, B+ Trees can store more index information at each level, keeping the tree height low, and reducing disk I/O.
Optimized Bulk Reading: The leaf node linked list enables sequential traversal, ideal for batch data access.
B+ Trees’ structure and linked leaf nodes make them well-suited for large-scale data with efficient range and order-based retrieval, making them a preferred choice for MySQL’s InnoDB storage engine.
